'CA' CLASS FLEET DESTROYER, HMS CAESAR of 1944

Sheet A and B show fully detailed internal and external profile and plan views. Sections and hull lines. Perspective views of bridge, carley float, and detailed weapon and equipment drawings. Completely redrawn and updated from my original CAESAR of 1971. Scale 1/16-in. per ft. Drawn December 1979.

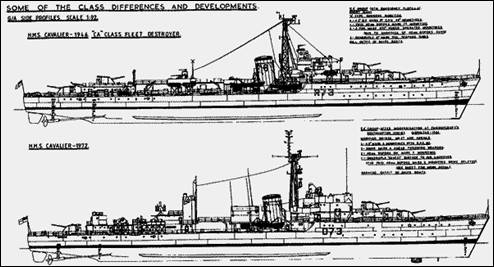

Sheet C depicts three side elevations and show HMS CAVALIER 1946, CAVALIER 1972 and CHEVIOT 1958. Plus armament views.
Sheet D shows part views of CAVALIER's 1957 and 1966 refit, to a larger scale.



4  Sheet Plan

1/192 SCALE



L/S/09 ABCD

PRICE:  $ 95.00

ProductID:

L/S/09 ABCD



CA CLASS FLEET DES.

Price:

95.00
