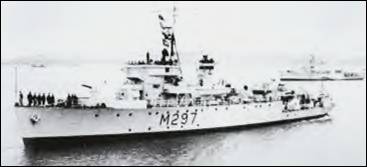

ALGERINE CLASS FLEET MINESWEEPER, HMS RATTLESNAKE of 1943



Two fully detailed sheets showing internal and external profile and plan views. Sections, hull lines, plating, hull openings etc.
Small detailed drawings of M/S fittings, armament, Type 271 radar lantern, PAC fittings, camouflage schemes, as modified in the1950s. Completely redrawn from my first drawing of 1971.





2  Sheet Plan

1/192 SCALE



L/S/10 AB

PRICE:  $ 55.00

ProductID:

L/S/10 AB



ALGERINE

Price:

55.00

Quantity:
