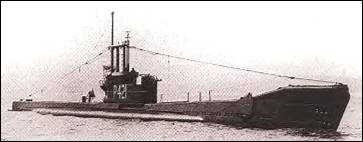

‘A' CLASS PATROL SUBMARINES, HMS/Ms AFFRAY and AENEAS of 1946 |
|
Fully detailed external and internal profile and plan views, with sections and variations in the anti-aircraft defenses shown. Drawn to cover the full scope of two large sheets, the scale is approximately 3/32-in per ft. Whilst they show the early 'A' class units, L/S/36 is of Alliance as modified, and may be seen in conjunction with the 24 sheets of profile drawings showing detail of the fittings, systems and equipment of the 'A' class. (L/S/51).
2 Sheet Plan 1/192 SCALE
L/S/29 AB PRICE: $ 55.00
|
|
