ALLIGATOR STERN WHEEL LAUNCH |
|
|

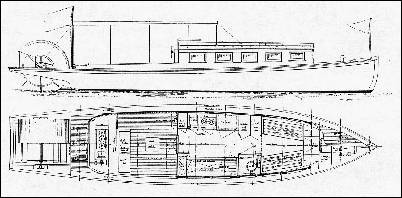

Rather than offering the plans to any specific scale, the entire two part article and plans are offered as a set reproduced on seven 11 x 17 inch sheets. The article includes building instructions and all necessary plan views to build the full size vessel. There are approx. nine pages of text, the plan includes: outboard profile, accommodation plan, hull lines, body plan, inboard profile, hull & deck framing plan, sections and interior details of cabin, mold patterns with full size dimensions for hull frames, paddlewheel construction details, mid-ship section and scantling details and window construction details. All plan views include full size dimensions, some of which will be hard to read as the plans were originally printed on 8.5 x 11 inch magazine pages. A small steam plant would go perfectly with this model.
JFR-003 PRICE: $ 20.00 |
|
