FAIRBANKS MORSE 180 HP 6-CYLINDER DIESEL ENGINE

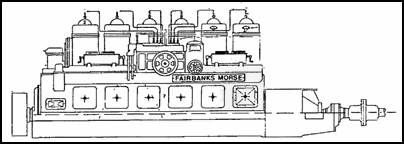

3-view drawing by Dr. John M. Bobbitt with all components labeled. 1 sheet to 1/12th scale. (1'' = 1') with auxiliaries to 1/24th scale. Includes engine, generator, centrifugal pump, electric motor, aux. air compressor, electrical control panel and St. Mary’s oil engine.









1 -SHEET

JFR-33

PRICE:  $ 20.00

ProductID: JFR-33
FAIRBANKS 180 HP
Price: 20.00
Quantity:
